RaptorRail™

DIMENSIONS
     LENGTH:                  125"
     WIDTH:                    50"
     HEIGHT:                   42"
     DRY WEIGHT:          2000 lbs

JOB BOX
     DIMENSIONS:         18" x 18" x 48"
     CAPACITY:               9 Cubic Feet
     DESCRIPTION:        16‐Gauge solid steel construction, powder
                                      coated inside and out. Locking t‐handle latch

INCLUDED ITEMS:

•  36 Railing Feet and Bases
•  72 Quick Attach/Release Pins (on Base)
•  36 Attaching Bolts/Nylon Nuts (on Base)
•  36 Posts
•  56 Ten‐Foot Rails
•  8 Adjustable Corners Rails
•  8 Large Adjustable Rails
•  4 Medium Adjustable Rails
•  4 Small Adjustable Rails
•  2 Mid‐Support Posts

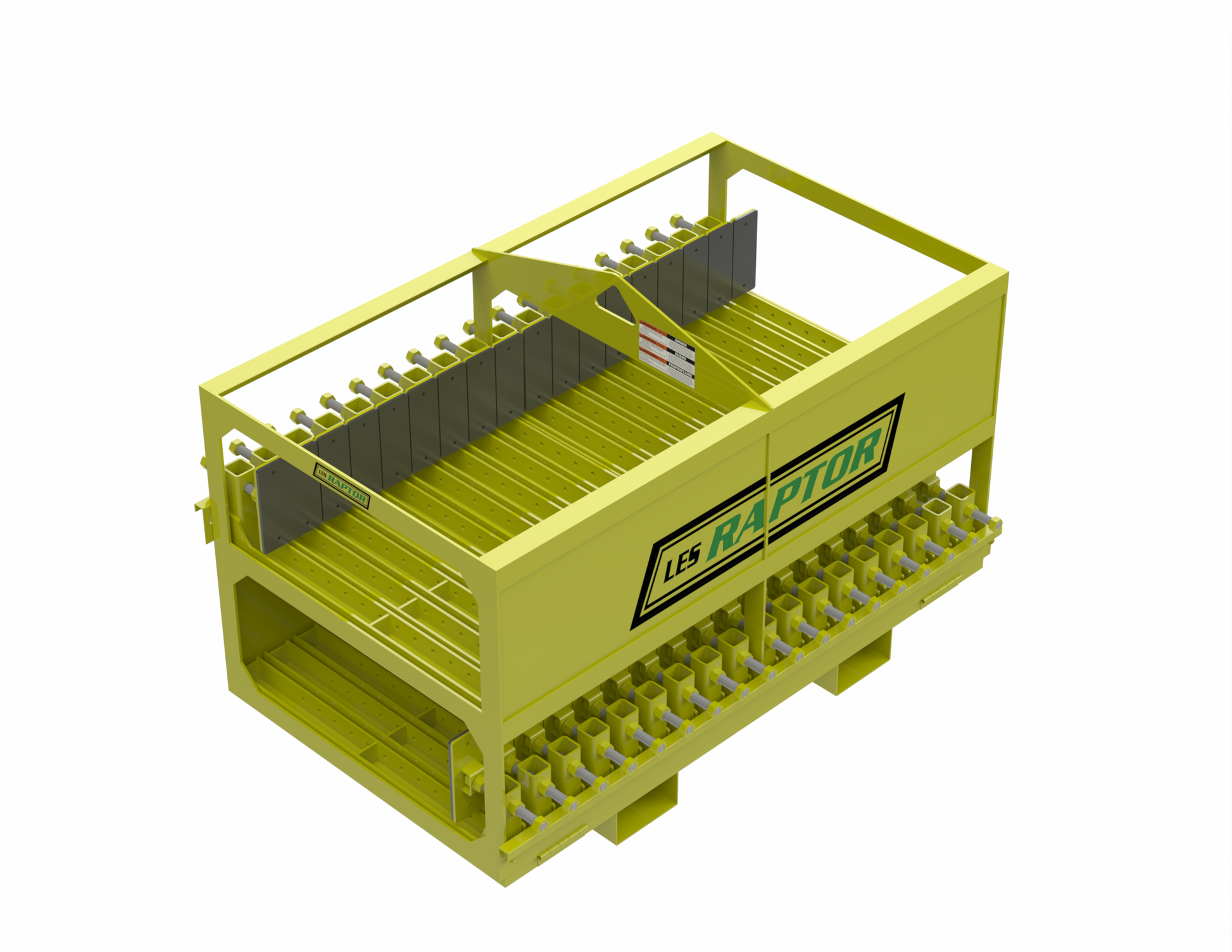

•  1 Rail System Crate
