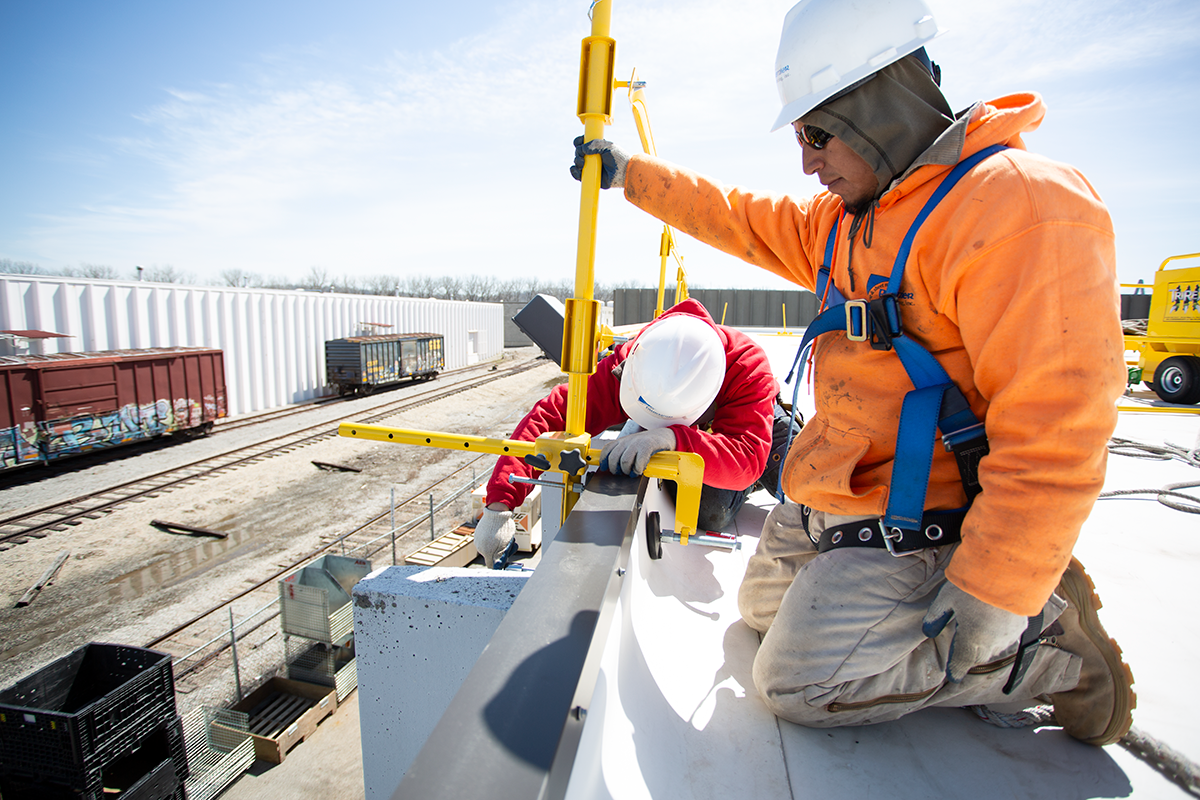

The All-In-One Guardrail System is a versatile, easy-to-use, and adjustable temporary guardrail solution. It is suitable for various surfaces including flat or low edges, gravel stops, parapet walls, and concrete slab overhangs. Its vertical adjustability and ability to rotate around the post make it especially adaptable for setting up corners and irregular geometries. A built-in parapet clamp and multiple adjustable rail options contribute to its cost-effectiveness and functionality.



Key Features:

•  Adjustable railing brackets that rotate around the post for corner setups and odd geometries.
• Built-in parapet clamp allows installation on parapet walls.
• Suitable for flat edges, gravel stops, concrete overhangs, and more.
• Storage crate included for organization and transport.
• Lightweight components; approximately 26 lbs per upright.
• Complies with OSHA standard 1926.502(b).

All-In-One 40 Guardrail - 10’ Rail Kit Components

•  40 All-In-One Uprights for Metal Rails
•  72 Ten-Foot Rails
• 4 Adjustable Rails (70”-120”)
• 4 Adjustable Rails (43”-70”)
•  4 Adjustable Rails (29”-43”)
• 8 Adjustable Corner Rails
• 1 Storage Crate

All-In-One Kit Options

• Ø  RR-AL-IN-1-20-10 - 200 feet
• Ø  RR-AL-IN-1-40-10 - 400 feet
• Ø  RR-AL-IN-1-50-10 - 500 feet



The RaptorRail Guardrail System is engineered for rapid setup and takedown, making it ideal for dynamic jobsites such as construction, maintenance, demolition, and roofing. It features swiveling base posts that accommodate pitches from 0:12 up to 9:12, and quick-release rails for added convenience. The system includes an optional parapet clamp for walls up to 24 inches wide, and all components are housed in a robust steel job box.



Key Features:

• Swiveling base posts accommodate pitched surfaces (0:12 to 9:12).
•  Quick-release rails enable efficient setup and breakdown.
• Optional parapet clamp for up to 24" wide walls.
• Powder-coated steel job box for secure storage.
•  Complies with OSHA 29 CFR 1926.502 and 1910.23.

RaptorRail Guardrail System Kit Components

RR-CS-35 - RaptorRail Kit w/Storage Crate

•  36 Railing Feet and Bases
• 72 Quick Attach/Release Pins (on Base)
• 36 Attaching Bolts/Nylon Nuts (on Base)
• 36 Posts
• 58 Ten-Foot Rails
• 4 Universal Corners
•  4 Large Adjustable Rails
•  4 Medium Adjustable Rails
•  4 Small Adjustable Rails
• 2 Mid-Support Posts
• 1 Rail System Crate

RaptorRail Parapet Clamp Kit Components

RCCS-36 - RaptorRail Parapet Wall kit w/ Storage Crate

• 36 Parapet Clamps
• 36 Quick Attach/Release Pins (in box)
• 1 Clamp Crate
